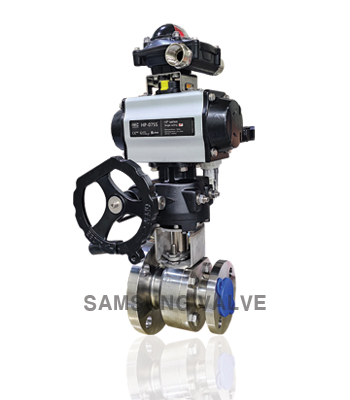

Tank bottom ball valve
PRODUCT SPECIFICATIONS
| DESIGN |
|---|
| ASME B16.34 |
| JIS B 2071 |
| BONNET |
|---|
| SIDE ENTRY |
| RATING |
|---|
| CLASS 150 |
| CLASS 300 |
| JIS 10K |
| JIS 20K |
| SIZE |
|---|
| 1" X 1-1/2" ~ 8" X 10" |
| 4" X 6" ~ 6" X 8" |
| 25 X 40 ~ 200 X 250 |
| 100 X 150 ~ 150 X 200 |
| APPLICATIONS |
|---|
| Draining and Discharging |
| Cleaning and Sterilizing |
| Filling and Transfer |
| Fine Chemicals and Biotechnology |
| END CONNECTION |
|---|
| ASME B16.5 |
| JIS B 2220 |
| RF |
| FACE TO FACE |
|---|
| ASME B16.10 |
| MANUFACTURE'S STANDARD |
| TEST |
|---|
| API 598 |
| JIS B 2003 |
| BODY MATERIAL |
|---|
| Carbon Steel |
| Stainless Steel |
| Duplex Stainless Steel |
| Super Duplex Stainless Steel |
| Monel / Alloy 625 / B148-C95800 |
| SEAT MATERIAL |
|---|
| PTFE |
| RTFE (Glass, Graphite, Carbon) |
| RTFM |
| DEVLON / PEEK |
| BORE |
|---|
| Full Bore |
| FEATURES |
|---|
| Minimizes Residual Product |
| Excellent Sealing Performance |
| Durability and Corrosion Resistance |
| Quick Operation |
| Versatile Actuation |
