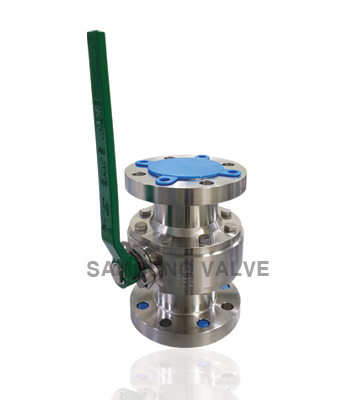

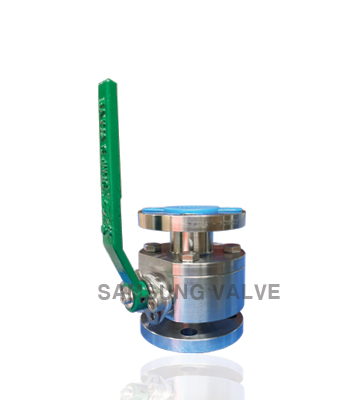

Pocketless ball valve
PRODUCT SPECIFICATIONS
| DESIGN |
|---|
| ASME B16.34 |
| JIS B 2071 |
| CTRUCTURE |
|---|
| SIDE ENTRY |
| RATING |
|---|
| CLASS 150 / JIS 10K |
| CLASS 300 / JIS 20K |
| CLASS 600 / JIS 40K |
| JIS 30K |
| SIZE |
|---|
| 1/2″ ~ 10″ / 15 ~ 250 |
| 1/2″ ~ 10″ / 15 ~ 250 |
| 1/2″ ~ 10″ / 15 ~ 250 |
| 15 ~ 250 |
| APPLICATIONS |
|---|
| Food AND Beverage Industry |
| Pharmaceuticals and Biotechnology |
| Chemical and Petrochemical Industry |
| Semiconductor Industry |
| END CONNECTION |
|---|
| ASME B16.5 |
| ASME B16.25 |
| DIN EN 1092-1 / JIS B 2220 |
| RF / FF / RTJ / BW |
| FACE TO FACE |
|---|
| ASME B16.10 |
| JIS B 2002 |
| TEST |
|---|
| API 598 |
| JIS B 2003 |
| BODY MATERIAL |
|---|
| Stainless Steel |
| Duplex Stainless Steel |
| Super Duplex Stainless Steel |
| Monel / Alloy 625 / B148-C95800 |
| SEAT MATERIAL |
|---|
| PTFE |
| RTFE (Glass, Graphite, Carbon) |
| RTFM |
| DEVLON / PEEK |
| BORE |
|---|
| FULL BORE |
| REDUCER BORE |
| FEATURES |
|---|
| Prevents Residue and Contamination |
| Lower Operating Torque |
| Easy to Clean |
| Ideal for Viscous and Slurry Fluids |
| Reduces Leakage Risk |
