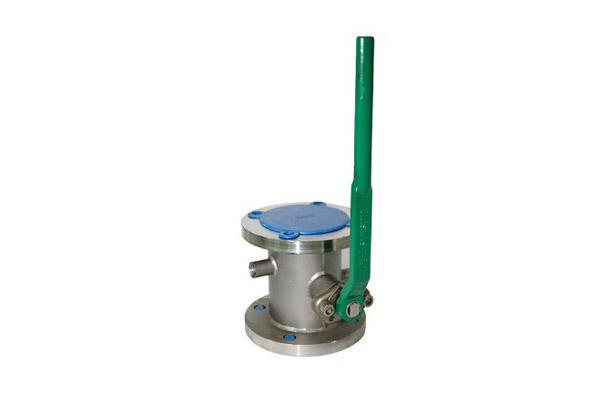

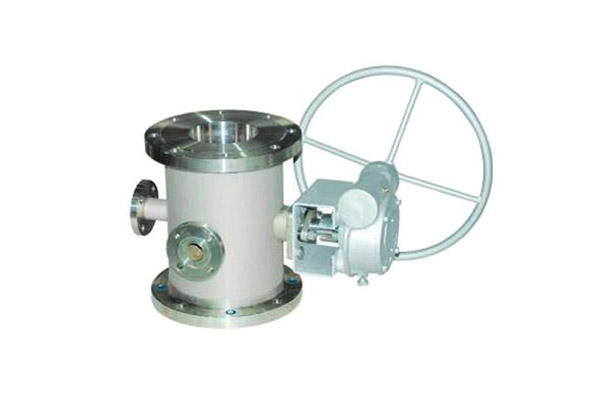

Jacket ball valve
Manufacturing Scope
- Size : Class 150 : DN15*40 (1/2"*1-1/2") ~ DN150*200 (8"*10")
- Class 300 : DN15*40 (1/2"*1-1/2") ~ DN80*125 (8"*10")
- Pressure Rating : Class 150 ~ 300, JIS 10K ~ 20K
- Working Temperature : '-29°C ~ +200°C
Standard Features
- Face to face : ASME B16.10, JIS B2002
- End flange : ASME B16.5, JIS B2238
- Shell wall thickness : ASME B16.34 & BS5351
- Fire safe design (API 607, API 6FA & BS6755)
- Anti-static device
- Locking device
