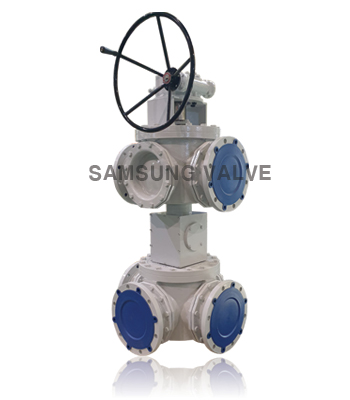

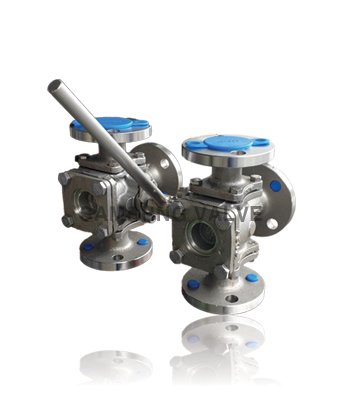

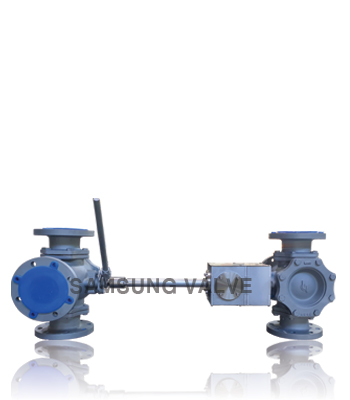

6-Way ball valve
PRODUCT SPECIFICATIONS
| DESIGN |
|---|
| ASME B16.34 |
| JIS B2071 |
| BONNET |
|---|
| BOLTED SIDE ENTRY |
| TOP ENTRY |
| RATING |
|---|
| CLASS 150 / 10K(0.98Mpa) |
| CLASS 300 / 20K(1.96Mpa) |
| SIZE |
|---|
| 1/2″ ~ 14″ / 15A ~ 350A |
| 1/2″ ~ 12″ / 15A ~ 300A |
| TEMPERATURE(℃) |
|---|
| -46℃ to +250℃ |
| END CONNECTION |
|---|
| ASME B16.5 |
| ASME B16.25 |
| DIN EN 1092-1 |
| JIS B2220 |
| RF / FF / RTJ / BW |
| FACE TO FACE |
|---|
| MANUFACTURE'S STANDARD |
| LEAKAGE CLASS |
|---|
| MSS SP 61 |
| API598 |
| JIS B2003 |
| MATERIAL |
|---|
| Carbon Steel |
| Stainless Steel |
| Special Alloy Steel |
| SEAT MATERIAL |
|---|
| PTFE / RTFE |
| PEEK / DEVLON |
| BORE |
|---|
| FULL BORE |
| FEATURES |
|---|
| FIRE SAFETY & ANTI-STATIC |
| SPECIAL CLEANING SERVICE |
| LOCKING DEVICE |
| BLOW-OUT PROOF STEM |
| MOV / POV / VALVE |
