Cryogenic ball valve
PRODUCT SPECIFICATIONS
| DESIGN |
|---|
| ASME B16.34 |
| BS 6364 |
| MSS-SP134 |
| ISO 28921 |
| STRUCTURE |
|---|
| BOLTED SIDE ENTRY |
| TOP ENTRY |
| RATING |
|---|
| CLASS 150 / 10K |
| CLASS 300 / 20K |
| CLASS 600 / 40K |
| JIS 30K |
| CLASS 900 |
| SIZE |
|---|
| 1/2″ ~ 24″ / 15 ~ 600 |
| 1/2″ ~ 24″ / 15 ~ 600 |
| 1/2" ~ 24" / 15 ~ 600 |
| 15A ~ 600 |
| 1/2" ~ 24" |
| APPLICATIONS |
|---|
| LNG Industry |
| Air Separation Units |
| Aerospace Industry |
| Food and Pharmaceutical Industry |
| Chemical Plants |
| END CONNECTION |
|---|
| ASME B16.5 |
| ASME B16.25 |
| DIN EN 1092-1 / JIS B 2220 |

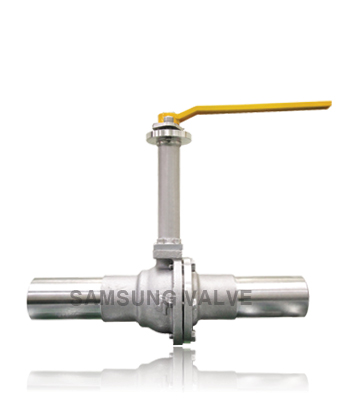

| RF / FF / RTJ / BW |
| FACE TO FACE |
|---|
| ASME B16.10 |
| API 6D |
| JIS B 2002 |
| KS B 2308 |
| TEST |
|---|
| API 598 |
| BS 6364 |
| MSS-SP134 |
| BODY MATERIAL |
|---|
| Stainless Steel |
| Nickel and Nickel Alloy |
| Special Alloy Steel |
| SEAT MATERIAL |
|---|
| PCTFE (KEL-F) |
| TFM1600 |
| BORE |
|---|
| FULL BORE |
| REDUCER BORE |
| FEATURES |
|---|

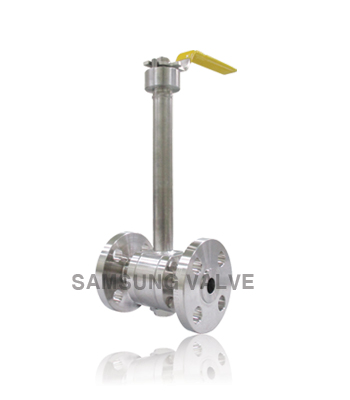

| Extended Bonnet |
| Specialized Materials |
| Cavity Pressure Self-Relief |
| High Sealability |

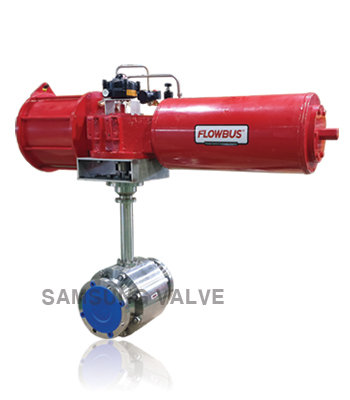

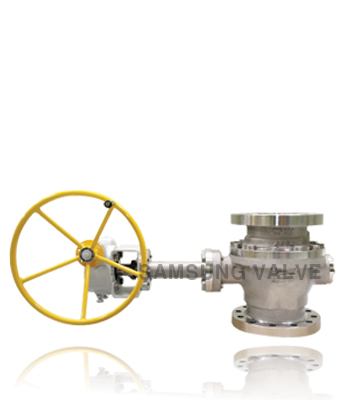

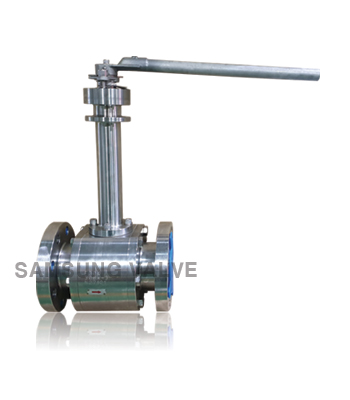

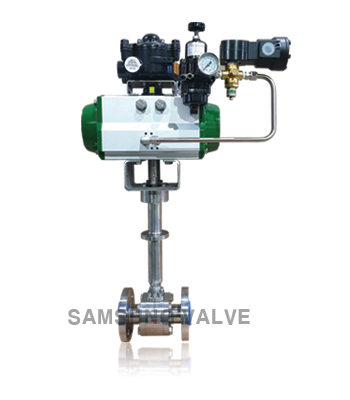

| Lever / Gear / POV / MOV |
