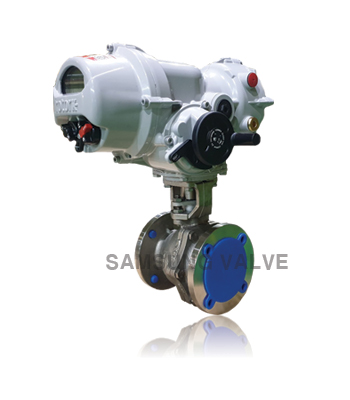

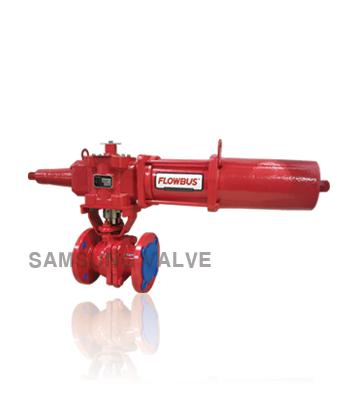

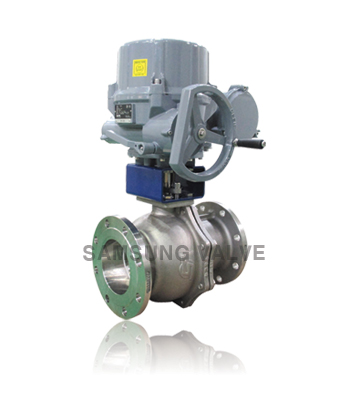

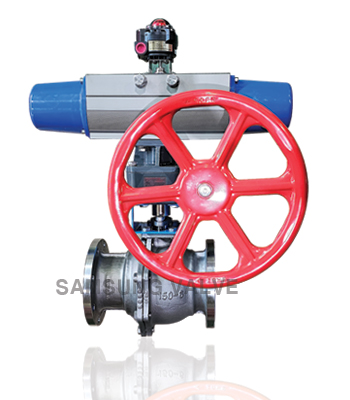

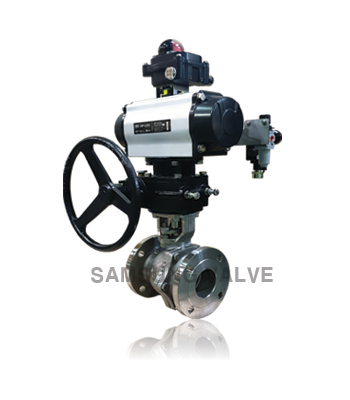

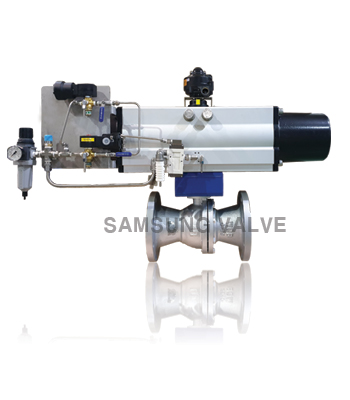

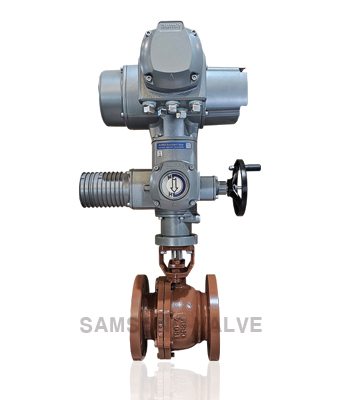

Floating type ball valve
PRODUCT SPECIFICATIONS
| DESIGN |
|---|
| ASME B16.34 |
| API 6D, API 608 |
| BS 5351 |
| JIS B 2071 |
| KS B 2308 |
| STRUCTURE |
|---|
| BOLTED SIDE ENTRY |
| TOP ENTRY |
| RATING |
|---|
| CLASS 150 / 10K(0.98Mpa) |
| CLASS 300 / 20K(1.96Mpa) |
| CLASS 600 / 40K(3.92Mpa) |
| 30K(2.94Mpa) |
| SIZE |
|---|
| 1/2″ ~ 14″ / 15 ~ 350 |
| 1/2″ ~ 8″ / 15 ~ 200 |
| 1/2″ ~ 4″ / 15 ~ 100 |
| 15 ~ 150 |
| APPLICATIONS |
|---|
| Chemical and Petrochemical plants |
| Oil and Gas Production |
| Power Generation |
| Various Liquids, Steam, Slurries |
| Solids and many other services |
| END CONNECTION |
|---|
| ASME B16.5 |
| ASME B16.25 |
| DIN EN 1092-1 |
| JIS B2220 |
| RF / FF / RTJ / BW / SPECIAL |
| FACE TO FACE |
|---|
| ASME B16.10 |
| API 6D |
| JIS B2002 |
| KS B2308 |
| TEST |
|---|
| API 598 |
| JIS B 2003 |
| KS B 2308 |
| BODY MATERIAL |
|---|
| Carbon Steel |
| Stainless Steel |
| Duplex Stainless Steel |
| Super Duplex Stainless Steel |
| Monel / Alloy 625 / B148-C95800 |
| SEAT MATERIAL |
|---|
| PTFE |
| RTFE (Glass, Graphite, Carbon) |
| RTFM |
| DEVLON / PEEK |
| SPECIAL |
| BORE |
|---|
| FULL BORE |
| REDUCER BORE |
| FEATURES |
|---|
| Fire Safety & Anti-Static |
| Blow -out Proof Stem |
| Locking Device |
| Special Cleaning Service |
| Toxic Service Valve |
