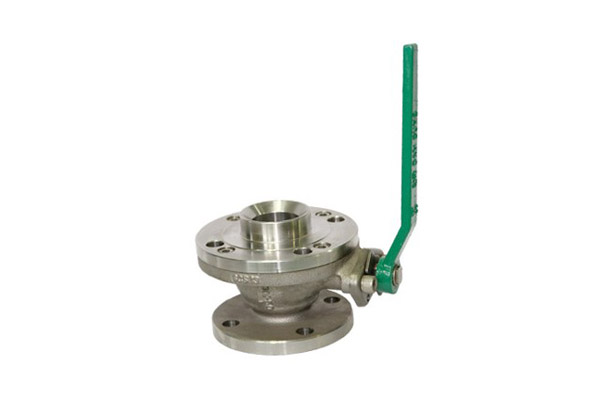

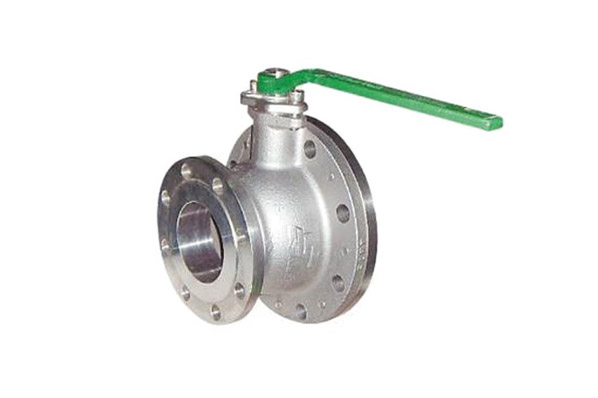

Tank bottom ball valve
Manufacturing Scope
- Size : Class 150 : DN25*40 (1"*1-1/2") ~ DN150*200 (6"*8")
- Class 300 : DN100*150 (4"*6") ~ DN150*200 (6"*8")
- Pressure Rating : Class 150 ~ 300, JIS 10K ~ 20K
- Working Temperature : '-29°C ~ +200°C
Standard Features
- Face to face : Maker standard
- End flange : ASME B16.5 , JIS B2238
- Shell wall thickness : ASME B16.34 & BS5351
- Fire safe design (API 607 , API 6FA & BS6755)
- Anti-static device
- Locking device
- Blow-out proof stem
